Deep Argo improves the accuracy and resolution of ocean bathymetry

Zilberman, N. V. ORCID: https://orcid.org/0000-0002-5855-1994; Scanderbeg, M. ORCID: https://orcid.org/0000-0002-0398-7272; Balem, K. ORCID: https://orcid.org/0000-0002-4956-8698; Schmitt, T.; Weatherall, P.; Thierry, V. ORCID: https://orcid.org/0000-0003-1602-6478; Van Wijk, E. ORCID: https://orcid.org/0000-0002-9375-4383; Sandwell, D. ORCID: https://orcid.org/0000-0001-5657-8707. 2025 Deep Argo improves the accuracy and resolution of ocean bathymetry. Earth and Space Science, 12 (8). 10.1029/2025EA004304

Before downloading, please read NORA policies.

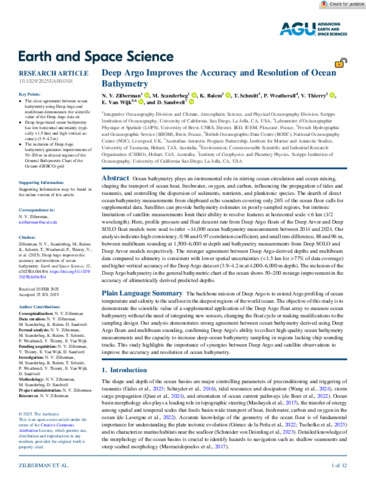

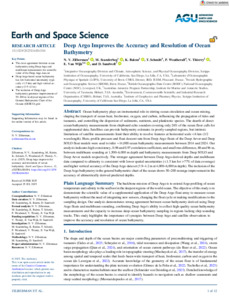

[thumbnail of Earth and Space Science - 2025 - Zilberman - Deep Argo Improves the Accuracy and Resolution of Ocean Bathymetry.pdf]
Preview
Text
© 2025. The Author(s). This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited,
Earth and Space Science - 2025 - Zilberman - Deep Argo Improves the Accuracy and Resolution of Ocean Bathymetry.pdf - Published Version
Available under License Creative Commons Attribution 4.0.

Download (3MB) | Preview

Abstract/Summary

Ocean bathymetry plays an instrumental role in stirring ocean circulation and ocean mixing, shaping the transport of ocean heat, freshwater, oxygen, and carbon, influencing the propagation of tides and tsunamis, and controlling the dispersion of sediments, nutrients, and planktonic species. The dearth of direct ocean bathymetry measurements from shipboard echo sounders covering only 26% of the ocean floor calls for supplemental data. Satellites can provide bathymetry estimates in poorly-sampled regions, but intrinsic limitations of satellite measurements limit their ability to resolve features at horizontal scale <6 km (1/2 wavelength). Here, profile pressure and float descent rate from Deep Argo floats of the Deep Arvor and Deep SOLO float models were used to infer ∼14,000 ocean bathymetry measurements between 2014 and 2024. Our analysis indicates high consistency, 0.98 and 0.97 correlation coefficient, and small rms difference, 88 and 96 m, between multibeam sounding at 1,500–6,000 m depth and bathymetry measurements from Deep SOLO and Deep Arvor models respectively. The stronger agreement between Deep Argo-derived depths and multibeam data compared to altimetry is consistent with lower spatial uncertainties (<1.5 km for >77% of data coverage) and higher vertical accuracy of the Deep Argo data set (3.9–4.2 m at 4,000–6,000 m depth). The inclusion of the Deep Argo bathymetry in the general bathymetric chart of the ocean shows 50–200 m range improvement in the accuracy of altimetrically derived predicted depths.

Item Type: Publication - Article
Digital Object Identifier (DOI): 10.1029/2025EA004304
ISSN: 2333-5084
Additional Keywords: ocean bathymetry, deep Argo, echo sounder, SWOT
NORA Subject Terms: Marine Sciences
Date made live: 28 Aug 2025 19:07 +0 (UTC)
URI: https://nora.nerc.ac.uk/id/eprint/540152
