Implementing Geomagnetically Induced Currents Mitigation During the May 2024 “Gannon” G5 Storm: Research Informed Response by the New Zealand Power Network

Mac Manus, D.H. ORCID: https://orcid.org/0000-0003-1175-2251; Rodger, C.J. ORCID: https://orcid.org/0000-0002-6770-2707; Renton, A.; Lo, V.; Malone‐Leigh, J.; Petersen, T. ORCID: https://orcid.org/0000-0001-8409-9500; Copland, M.; Hendry, A.T. ORCID: https://orcid.org/0000-0002-9130-3781; Clilverd, M.A. ORCID: https://orcid.org/0000-0002-7388-1529; Richardson, G.S. ORCID: https://orcid.org/0000-0002-9504-4457. 2025 Implementing Geomagnetically Induced Currents Mitigation During the May 2024 “Gannon” G5 Storm: Research Informed Response by the New Zealand Power Network. Space Weather, 23 (6), e2025SW004388. 10.1029/2025SW004388

Before downloading, please read NORA policies.

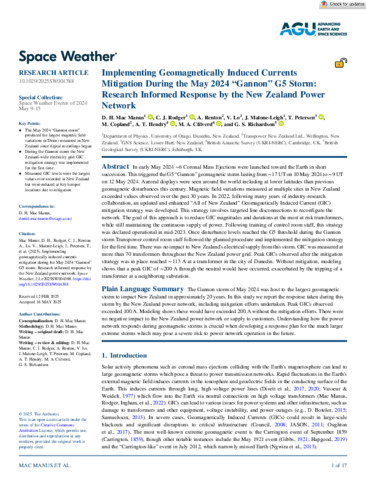

[thumbnail of Open Access Paper]
Preview
Text (Open Access Paper)
© 2025. The Author(s).
Space Weather - 2025 - Mac Manus - Implementing Geomagnetically Induced Currents Mitigation During the May 2024 Gannon G5.pdf - Published Version
Available under License Creative Commons Attribution 4.0.

Download (4MB) | Preview

Abstract/Summary

In early May 2024 ∼6 Coronal Mass Ejections were launched toward the Earth in shortsuccession. This triggered the G5 “Gannon” geomagnetic storm lasting from ∼17 UT on 10 May 2024 to ∼9 UTon 12 May 2024. Auroral displays were seen around the world including at lower latitudes than previousgeomagnetic disturbances this century. Magnetic field variations measured at multiple sites in New Zealandexceeded values observed over the past 30 years. In 2022, following many years of industry‐researchcollaboration, an updated and enhanced “All of New Zealand” Geomagnetically Induced Current (GIC)mitigation strategy was developed. This strategy involves targeted line disconnections to reconfigure thenetwork. The goal of this approach is to reduce GIC magnitudes and durations at the most at risk transformers,while still maintaining the continuous supply of power. Following training of control room staff, this strategywas declared operational in mid‐2023. Once disturbance levels reached the G5 threshold during the Gannonstorm Transpower control room staff followed the planned procedure and implemented the mitigation strategyfor the first time. There was no impact to New Zealand's electrical supply from this storm. GIC was measured atmore than 70 transformers throughout the New Zealand power grid. Peak GICs observed after the mitigationstrategy was in place reached ∼113 A at a transformer in the city of Dunedin. Without mitigation, modelingshows that a peak GIC of ∼200 A through the neutral would have occurred, exacerbated by the tripping of atransformer at a neighboring substation.

Item Type: Publication - Article
Digital Object Identifier (DOI): 10.1029/2025SW004388
ISSN: 1542-7390
Additional Keywords: geomagnetically induced currents, mitigation, Gannon
Date made live: 04 Jun 2025 12:56 +0 (UTC)
URI: https://nora.nerc.ac.uk/id/eprint/539520
